High-Accuracy Digital Viscosity Measurement for Laboratory and Industrial Applications

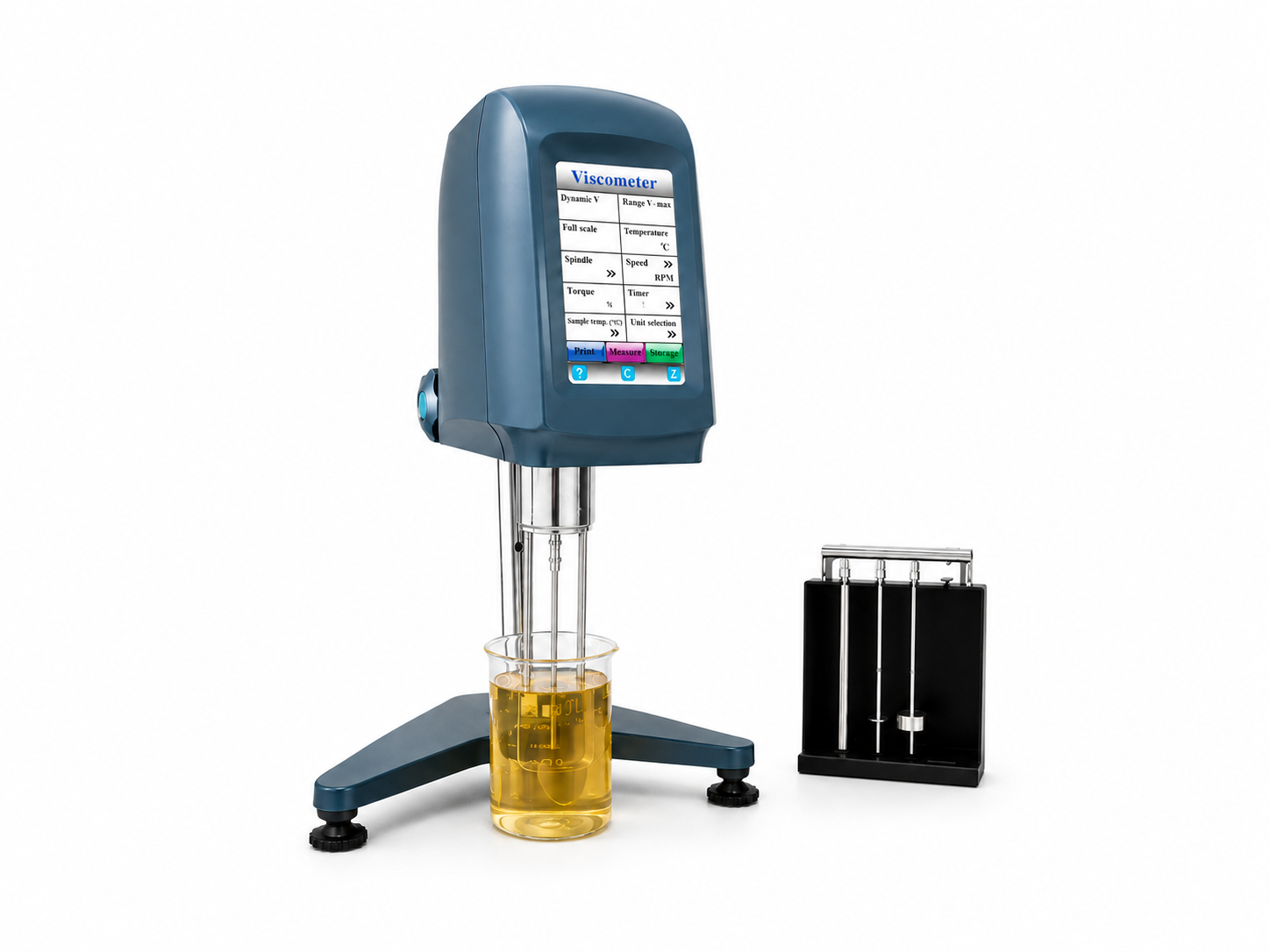

The RSolv Touch Screen Viscometer is designed for accurate, repeatable, and user-friendly viscosity measurement across a wide range of liquid and semi-solid samples. Featuring a full-color LCD touch screen, multiple spindle options, and direct parameter display, it helps laboratories perform reliable viscosity analysis for quality control, research, and process validation. The instrument supports applications across pharmaceutical, food, petrochemical, chemical, cosmetic, paint, adhesive, and dairy industries.
Key Features
- High-accuracy digital viscosity measurement
- Full-color LCD touch screen interface
- Direct display of viscosity, temperature, spindle speed, and torque
- Auto Range function for simplified operation
- Time-based measurement function
- RTD temperature monitoring sensor support
- Sound alarm for torque below 20%
- Linear calibration for reliable performance
- RS232 interface for data communication
- Stable and repeatable measurement results
Technical Specifications
| Specification | Details |
|---|---|
| Measuring Range | 20–2,000,000 mPa·s |
| Speed (RPM) | 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 |
| Standard Spindles | 4 |
| Measurement Accuracy | ±1.0% of range |
| Repeatability | ±0.5% |
| Temperature Monitoring | RTD Sensor Probe |
| Display | LCD Touch Screen |
| Output | RS232 Interface |
| Power Supply | AC 220V, 50Hz |
| Dimensions | 400 × 350 × 360 mm |
| Weight | Approximately 9 kg |
As a trusted lab equipment manufacturer and lab instruments supplier in India, RSolv Lifesciences offers reliable laboratory instruments for pharmaceutical, biotechnology, chemical, food, environmental, academic, and industrial laboratories.
- Quality-tested laboratory instruments
- Technical application support
- Reliable after-sales service
- Fast product availability
- Competitive pricing
- Nationwide supply across India
